Venlo Polycarbonate PC Sheet Greenhouse

VENLO polycarbonate pc sheet greenhouse uses a span of multiple tops, with modern appearance, stable structure. It gradually becomes the ideal choice for agricultural greenhouse with its excellent light transmission, strong impact resistance, excellent heat insulation performance, excellent weather resistance and high safety, TOP greenhouse has constructed about 250,000㎡ polycarbonate greenhouse in China, We can customize a suitable PC greenhouse for you.

The main body of the PC sheet greenhouse has columns, purlins, side rails, arch frames, gutter, connectors, special aluminum profiles, seals, fasteners, etc. All materials are made of high-quality carbon steel in line with the Q235 national standard, with good anti-corrosion, service life of more than 20 years. AS a professional greenhouse factory in China, you can buy clear polycarbonate for greenhouse from us.

Greenhouse Specification

● the span of 8.0, 9.6, 12.0m,

● the bay of 4.0, 4.5, 5.0m,

● the gutter height of 5.0, 6.0, 6.5m

all the dimensions can be adjusted according to user requirements

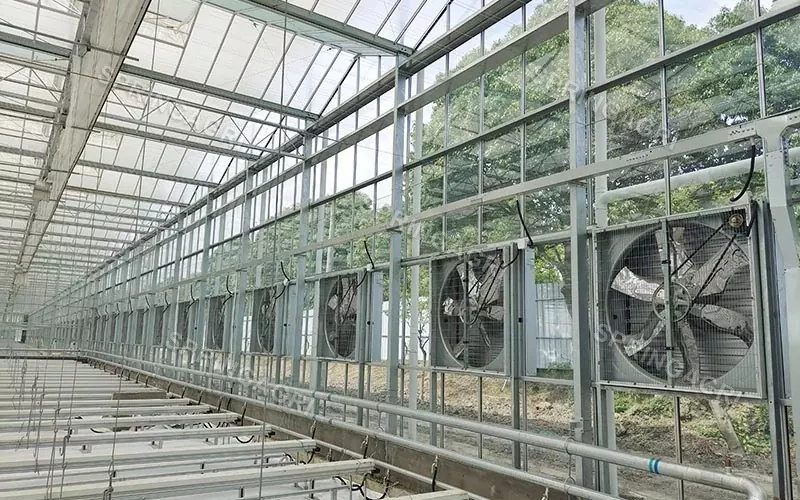

The main body of the venlo polycarbonate greenhouse is equipped with internal and external sunshade system, sky and side ventilation window system, wet curtain, fan cooling system, computer monitoring system, automatic control system and other facilities.

Covering Material

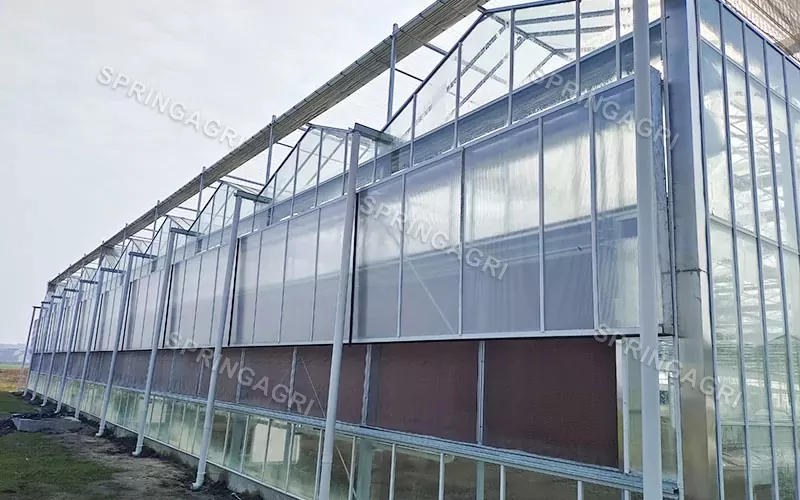

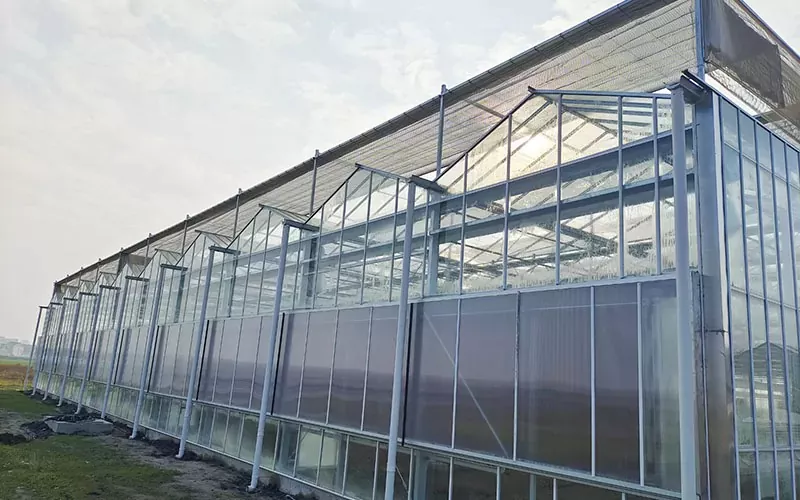

The top is covered with an outer layer of anti-ultraviolet light and an inner layer of anti-condensation polycarbonate hollow board, and the surrounding walls are polycarbonate hollow board according to the requirements.

Excellent Light Transmission

The light transmission rate can reach more than 85%, and it can make the light evenly distributed in the greenhouse, improve the photosynthesis efficiency of crops. Compared with other materials, there will be no brittle or cracking phenomenon, which can provide a better growing environment for crops in the greenhouse.

Strong impact resistance

The impact strength is 250-300 times that of ordinary glass. Greenhouses are usually built in the open air zone, and face a variety of weather challenges, so this greenhouse polycarbonate sheet can greatly reduce the damage of the greenhouse covering material and reduce the maintenance cost of the greenhouse

Good Heat Insulation

The thermal insulation performance of the greenhouse PC sheet is about 200 times as much as the glass and 8 times as much as the film. It can maintain the internal temperature of the greenhouse in winter and reduce heating costs, prevent direct sunlight in summer, reduce heat into the greenhouse interior, to avoid the impact of high temperature on crops.

Environmental And Non-Poisonous

It is made of non-toxic and pollution-free raw materials, and meets the requirements of environmental protection, will not release harmful substances, and will not pollute the human body and crops.

Parameter (Specification)

Parameters And Specifications

Dimension Parameter

Load Parameter

SpanLength

8m、9.6m、12m

Wind Load

40-120km/h

Bay Length

4m、4.5m、5m

Snow Load

0-100cm

Top Height

5m -8m

Hanging Load

0-15Kg/M²

Gutter Height

3.5m-5m

Maximum Drainage Capacity

140mm/h

Skeleton Frame

Covering Materials

Hot Dip Galvanized Steel Tubes

8mmpolycarbonate sheet,

Optional Systems

Ventilation System、Shading System、Irrigation System、Cooling System、Heating System、Lighting System、Seedbed System、Control System、OtherCustomized Equipment

Applications

Melons And Fruits, Vegetables, Flowers And Trees, Chinese Medicinal Materials

Marks

The above parametersjustfor reference and subject to actual projects

Feature And Application

We use polycarbonate panels as covering materials, we can offer you an economical price for this venlo polycarbonate greenhouse. Because of its excellent performance and environmental protection characteristics, it has also been favored by the majority of farmers and horticultural enthusiasts. The greenhouse is mainly used for ecological restaurants, exhibition and sightseeing, scientific research experiments, demonstration and promotion, efficient planting (melons and fruits, vegetables, flowers and trees, Chinese medicinal materials, etc.), agricultural production exhibition and marketing, efficient breeding (aquatic products, livestock and poultry, insects, etc.), industrial comprehensive cycle.
